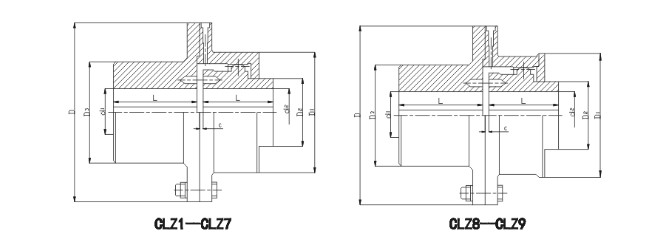

CLZ type gear coupling is a type of gear coupling which belongs to rigid flexible coupling. It is composed of inner gear ring with same number of teeth and flange half coupling with outer teeth. CLZ type gear coupling has good impact performance, but the contact stress of tooth surface and bending fatigue strength of tooth root are higher than that of drum type gear coupling.
CLZ type gear coupling in the work, the relative angular displacement of the two axes, the tooth surface of the inner and outer teeth periodically axial relative sliding, will form the tooth surface wear and power consumption, therefore, the gear coupling needs to work in a good and sealed state. Gear coupling radial size is small, bearing capacity is large, often used in low speed and heavy load conditions of the shaft drive, high precision and dynamic balance of the gear coupling can be used for high speed drive, such as gas turbine shaft drive.
