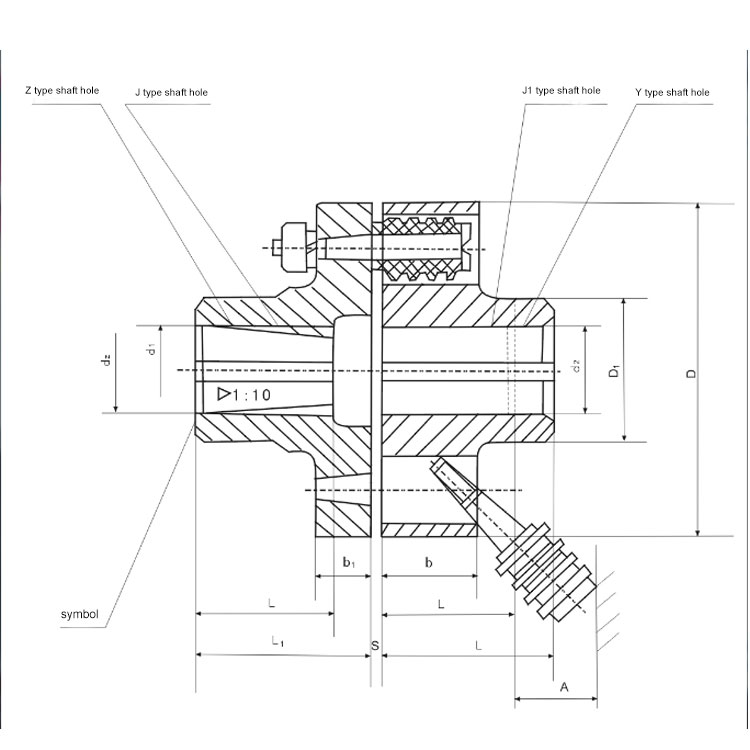

LT(original TL) type elastomeric sleeve column pin coupling is a column pin with an elastomeric sleeve (rubber material) at one end, mounted in the flange hole of the two halves of the coupling to realize the connection of the two halves. LT(original TL) type elasto-sleeve pin coupling was once widely used in China. It had been formulated as the standard of mechanical department as early as the late 1950s.
LT(original TL) elastomer sleeve pin coupling is simple in structure, easy to manufacture, does not need to be lubricated, does not need to bond with metal vulcanization, it is convenient to replace the elastomer sleeve, does not need to move the half coupling, and has certain compensation for the relative offset of two shafts and damping buffer performance. Elastic sleeve work is compressed deformation, due to the elastic sleeve thickness is thin, small volume, elastic deformation is limited, so, elastic sleeve pin coupling can compensate the axis displacement and elasticity, but the axis displacement allowable compensation amount is less, the elasticity is weak.
LT(original TL) elastomeric sleeve pin couplings rely on the locking force of the pin assembly to generate the friction torque on the contact surface and compress the rubber elastomeric sleeve to transfer the torque. It is suitable for medium and small power shafting transmission with good rigidity, high accuracy, small impact load and low requirement for vibration reduction.
