Double-piloted design JSJ spacer grid coupling
JSJ type intermediate shaft snake spring coupling is suitable for impact coal crushers, snake spring coupling stone crushers, crank reciprocating movement, mines, heavy machinery, reducer, etc.
JSJ type serpentine spring coupling with intermediate shaft inserts the serpentine spring blade into the tooth groove of the two halves of the coupling in an axial way to realize the connection between the prime mover and the working machine.
JSJ type connecting middle shaft snake-like spring coupling reed contact tooth surface is arc, the size of the contact surface changes with the size of the transmission torque, so it can withstand large load variation, by measuring its short-term overload capacity is rated torque 2 ~ 3 times, transmission efficiency up to , reliable operation;
JSJ type intermediate shaft snake spring coupling is simple in structure, convenient in assembly and disassembly, allowing for large installation deviation.
JSJ type intershaft snake spring coupling features:
1, good vibration reduction, long service life
2. Wide range of variable load, starting
3. High transmission efficiency and reliable operation
4, low noise, good lubrication
5. Simple structure, convenient assembly and disassembly
6. Large installation deviation is allowed.
JSJ type intershaft snake spring coupling parameters:
Specifications JSJ1-16
Nominal torque 140-160000
Axle hole diameter 22-360
Shaft hole length 48-744

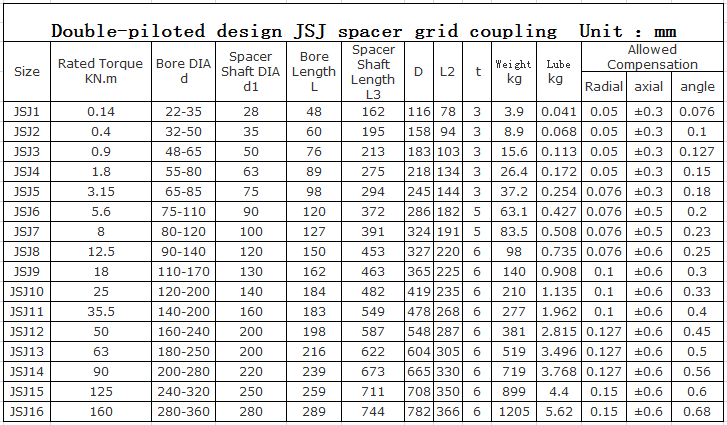

JSJ type intershaft snake spring coupling basic parameters and main dimensions (JB/ t8869-2000) /mm
