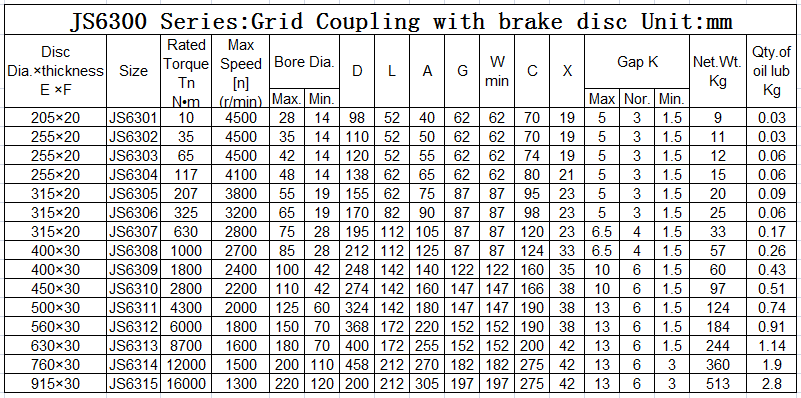

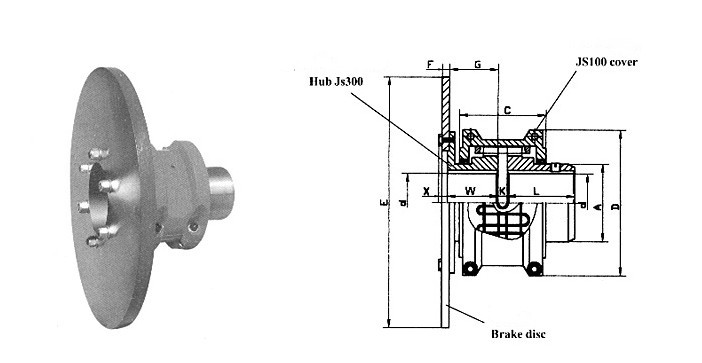

JS6300 series brake disc spring coupling is a kind of metal elastic coupling with advanced structure.It uses the serpentine spring sheet axially embedded in the tooth groove of the two half couplings to realize the connection between the prime mover and the working machine.The contact surface of the reed is curved,and the size of the contact surface changes with the size of the torque,so it can withstand large load changes,the short-term overload capacity is measured as 2~3 times of the rated torque,transmission efficiency up to ,reliable operation;And the structure of the snake spring coupling is simple,easy to assemble and disassemble,allowing a large deviation in the installation,suitable for the impact type of coal crusher,stone crusher,crank reciprocating movement,mining,heavy machinery,reducer and so on.
