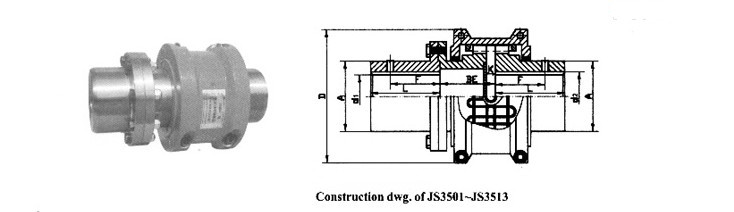

JS3500 series hemi-removable Grid Coupling are mainly composed of two semi-couplings,two semi-housings,two sealing rings and serpentine spring plates.It relies on the coiled spring embedded in the cogging groove of the two half couplings to transfer torque,and the coupling is embedded in the cogging groove of the two half couplings with the serpentine spring sheet to realize the link between the driving shaft and the driven shaft.In operation,the driven end is driven by the axial force of the teeth of the active end facing the snake spring to transfer the torque.In this way,the resonance phenomenon is avoided to a large extent.In addition,the elastic variable generated by the reed in the transmission of torque enables the mechanical system to achieve better vibration reduction effect,with the average vibration reduction rate reaching more than 36%.
JS3500 series hemi-removable Grid Coupling advantages:
1.Good vibration damping and long service life.
2.Large load bearing range and starting.
3.High transmission efficiency and reliable operation.
4,low noise,good lubrication.
5,simple structure,easy to assemble and disassemble.
6,less parts,small size,light weight.
7.Large installation deviation is allowed.
