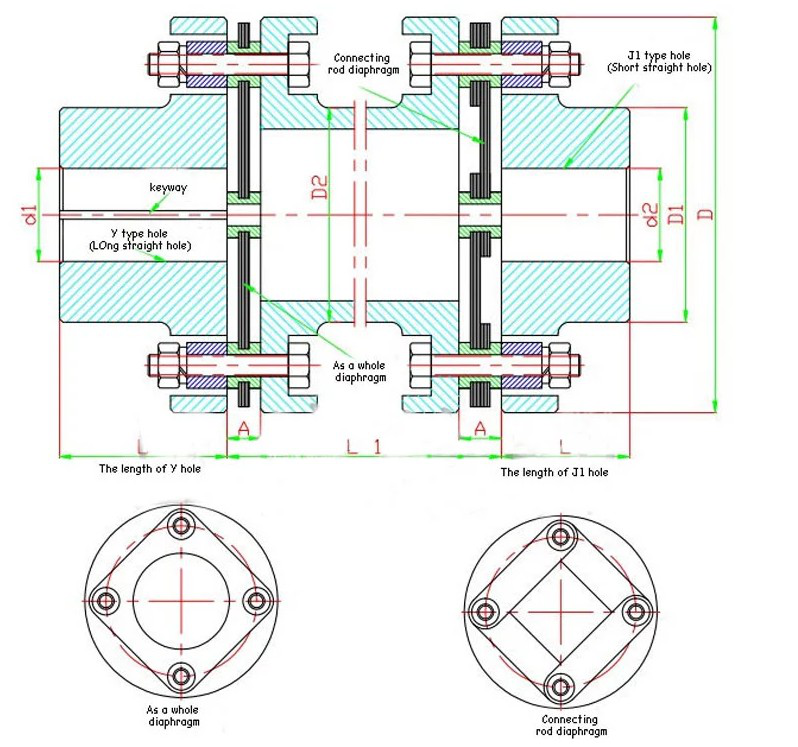

JMIIJ High Quality Double Disc Flexible Diaphragm Coupling compensates for two axis misalignment,strong radial displacement,small flexibility and large axial displacement,allowing axial,radial and angular displacement.The JMIIJ High Quality Double Disc Flexible Diaphragm Coupling are different from the common diaphragm couplings.They not only connect the intermediate shaft,extend the transmission distance,but also have two diaphragms to increase the flexibility compensation amount,so they are also called double diaphragm couplings.
JMIIJ High Quality Double Disc Flexible Diaphragm Coupling can accurately transfer speed,operation without rotation difference,and can be used for precision mechanical transmission.The transmission efficiency is up to in the transmission,especially for medium and high speed high power transmission.It is simple in structure,light in weight,small in volume and convenient in assembly and dismantling.Do not have to move the machine to install,without lubrication.Adapt to the high temperature(-80+300)and the bad environment work,and can be operated safely under the condition of shock and vibration.It has obvious shock absorption,no noise,no wear and tear.
