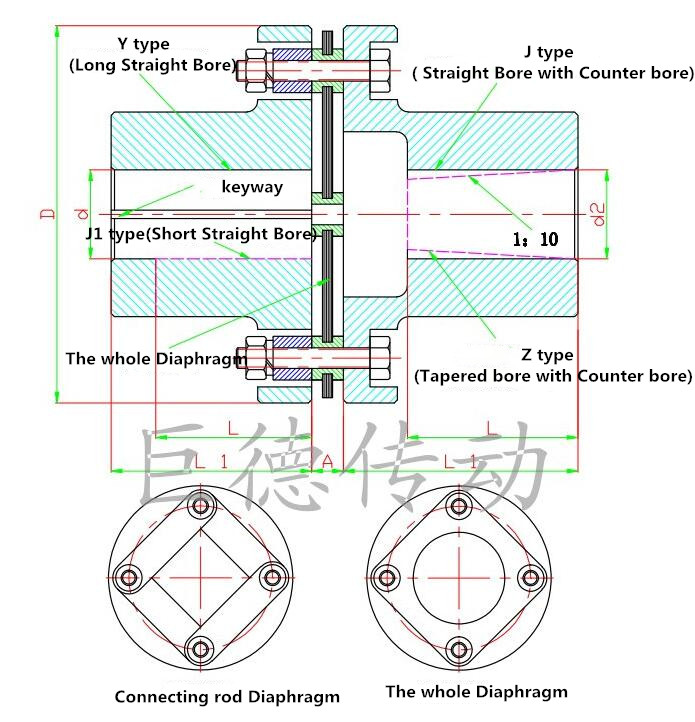

JMI Single Diaphragm Coupling Unit:mm | |||||||||||
Size | Rated Torque | Max Torque | Max Speed | Bore DIA (H7) | Bore Length | D | A | Weight | |||
Y | J、J1、Z | Recommend | |||||||||
N·m | N·m | r/min | d,d2 | L | L | L1 | L | kg | |||
JMⅠ-1 | 25 | 80 | 6000 | 14 | 32 | - | J1:27, Z1:20 | 35 | 90 | 8.8 | 1 |
16、18、19 | 42 | 30 | |||||||||
20、22 | 52 | 38 | |||||||||
JMⅠ-2 | 63 | 180 | 5000 | 18、19 | 42 | - | 30 | 45 | 100 | 9.5 | 1.3 |
20、22、24 | 52 | 38 | |||||||||
25 | 62 | 44 | |||||||||
JMⅠ-3 | 100 | 315 | 5000 | 20、22、24 | 52 | - | 38 | 50 | 120 | 11 | 2.3 |
25、28 | 62 | 44 | |||||||||
30 | 82 | 60 | |||||||||
JMⅠ-4 | 160 | 500 | 4500 | 24 | 52 | - | 38 | 55 | 130 | 13 | 3.3 |
25、28 | 62 | 44 | |||||||||
30、32、35 | 82 | 60 | |||||||||
JMⅠ-5 | 250 | 710 | 4000 | 28 | 62 | - | 44 | 60 | 150 | 14 | 5.3 |
30、32、35、38 | 82 | 60 | |||||||||
40 | 112 | 84 | |||||||||
JMⅠ-6 | 400 | 1120 | 3600 | 32、35、38 | 82 | 82 | 60 | 65 | 170 | 16 | 8.7 |
40、42、45、48、50 | 112 | - | 84 | ||||||||
JMⅠ-7 | 630 | 1800 | 3000 | 40、42 | 112 | 112 | 84 | 70 | 210 | 19 | 14.3 |
45、45、50、55、56 | - | ||||||||||
60 | 142 | 107 | |||||||||
JMⅠ-8 | 1000 | 2500 | 2800 | 45、48 | 112 | 112 | 84 | 80 | 240 | 23 | 22 |
50、55、56 | - | ||||||||||
60、63、65、70 | 142 | 107 | |||||||||
JMⅠ-9 | 1600 | 4000 | 2500 | 55、56 | 112 | 112 | 84 | 85 | 260 | 24 | 29 |
60、63、65、70、71、75 | 142 | - | 107 | ||||||||
80 | 172 | 132 | |||||||||
JMⅠ-10 | 2500 | 6300 | 2000 | 63、65、70、71、75 | 142 | 142 | 107 | 90 | 280 | 17 | 52 |
80、85、90、95 | 172 | - | 132 | ||||||||
JMⅠ-11 | 4000 | 9000 | 1800 | 75 | 142 | 142 | 107 | 95 | 300 | 20 | 69 |
80、85、90、95 | 172 | - | 132 | ||||||||
100、110 | 212 | 167 | |||||||||
JMⅠ-12 | 6300 | 12500 | 1600 | 90、95 | 172 | - | 132 | 120 | 340 | 23 | 94 |
100、110、120 、125 | 212 | 167 | |||||||||
JMⅠ-13 | 10000 | 18000 | 1400 | 100、110、120 、125 | 212 | - | 167 | 135 | 380 | 28 | 128 |
130、140 | 252 | 202 | |||||||||
JMⅠ-14 | 16000 | 28000 | 1200 | 120、125 | 212 | - | 167 | 150 | 420 | 31 | 184 |
130、140、150 | 252 | 202 | |||||||||
160 | 302 | 242 | |||||||||
JMⅠ-15 | 25000 | 40000 | 1120 | 140、150 | 252 | - | 202 | 180 | 480 | 38 | 263 |
160、170、180 | 302 | 242 | |||||||||
JMⅠ-16 | 40000 | 56000 | 1000 | 160、170、180 | 302 | - | 242 | 200 | 560 | 41 | 384 |
190、200 | 352 | 282 | |||||||||
JMⅠ-17 | 63000 | 80000 | 900 | 190、200、220 | 352 | - | 282 | 220 | 630 | 47 | 561 |
240 | 410 | 330 | |||||||||
JMⅠ-18 | 100000 | 125000 | 800 | 220 | 352 | - | 282 | 250 | 710 | 55 | 723 |
240、250、260 | 410 | 330 | |||||||||
JMⅠ-19 | 160000 | 200000 | 700 | 250、260 | 410 | - | 330 | 280 | 800 | 48 | 1267 |
280、300、320 | 470 | 380 |
Features
Unitized disc pack
Infinite life when properly aligned
Torsionally rigid without any back lash
No need for lubrication or maintenance
No wearing parts and high resistance to harsh environmental conditions
Larger sizes are available upon request
Power transmission | 0.1 – 70 MW |
Speeds | up to 80 000 rpm |
Torque | up to 1 500 000 Nm |
Design models | single diaphragm double-diaphragm |
Connection type | Inside hub Outside hub Flange |
Diaphragm-sleeve connection | Bolted |
